Fleet

Our fleet of semitrailers, modular trailers, and accessories is equipped to efficiently transport two complete wind turbine generators of any type currently on the market. This capability enables us to offer reliable transportation solutions that help our clients meet their project timelines.

+

0

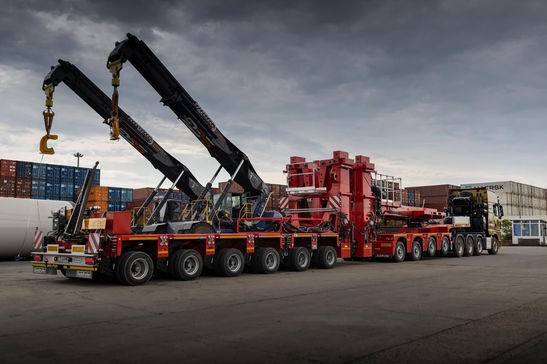

Modular axles

0

+

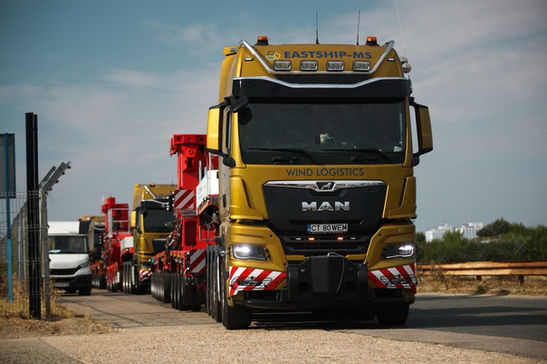

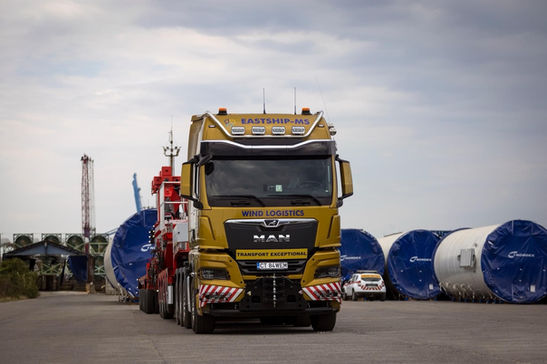

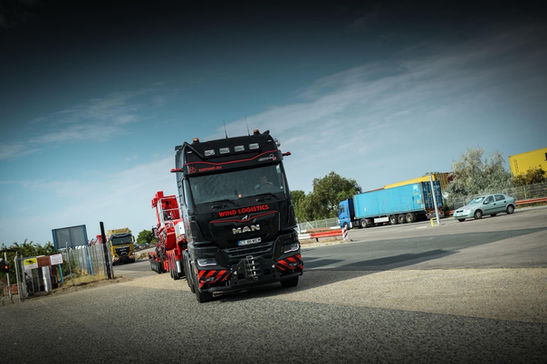

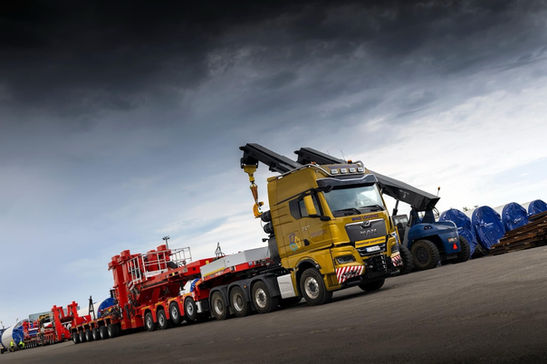

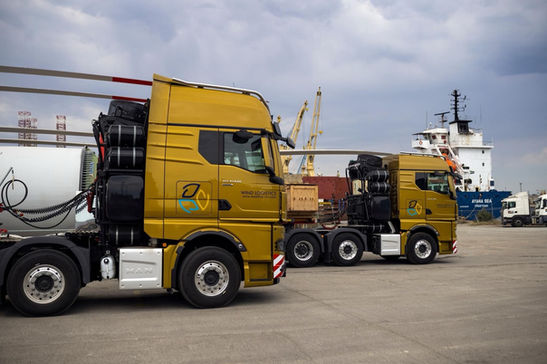

Trucks

+

0

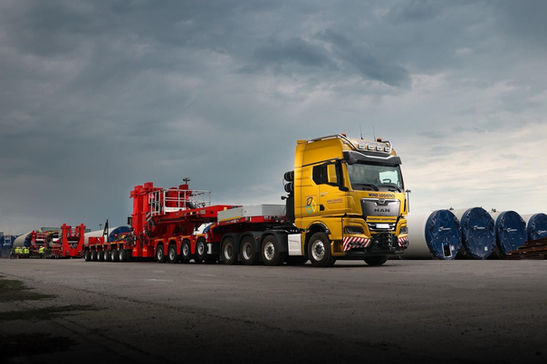

Semitrailers

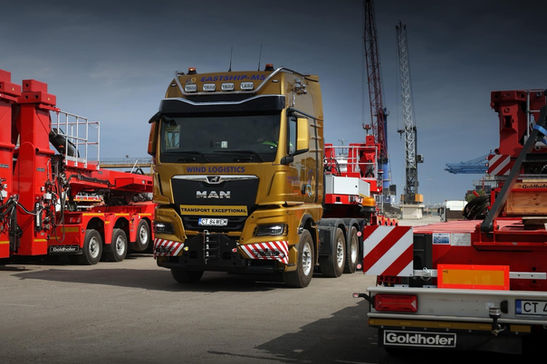

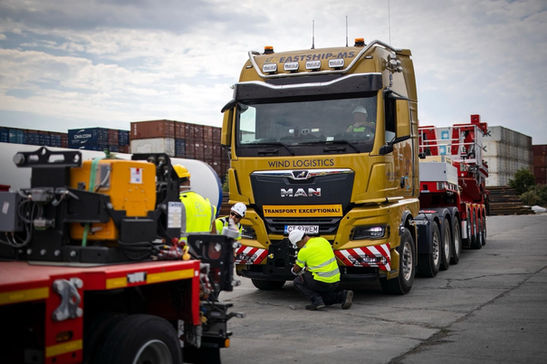

Trucks

Special trailers

BladeS modules

our fleet is equipped with specialised BladeS modules from Goldhofer

BladeS trailers

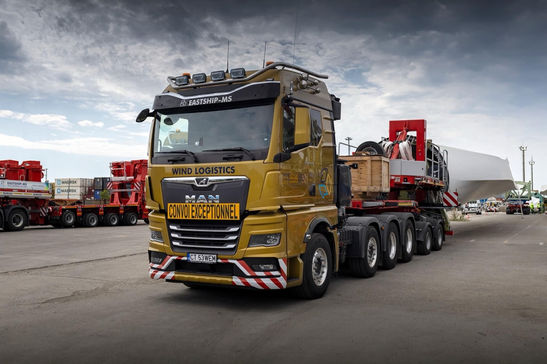

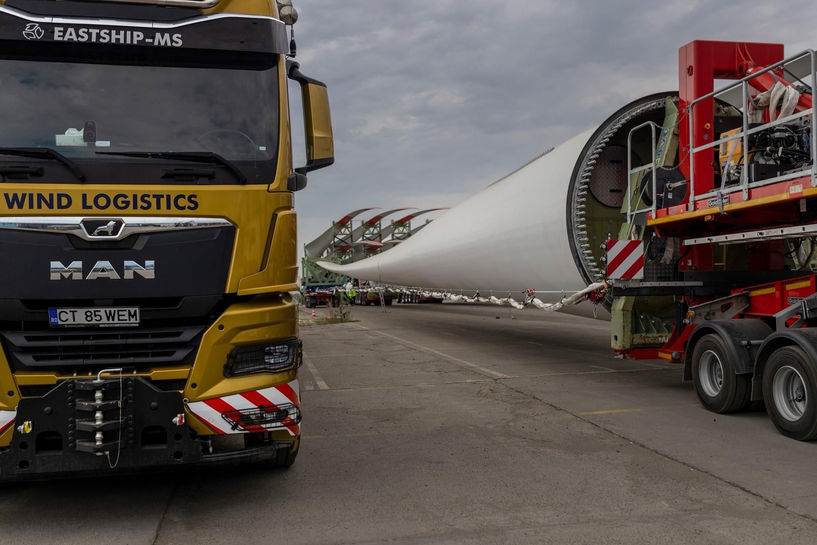

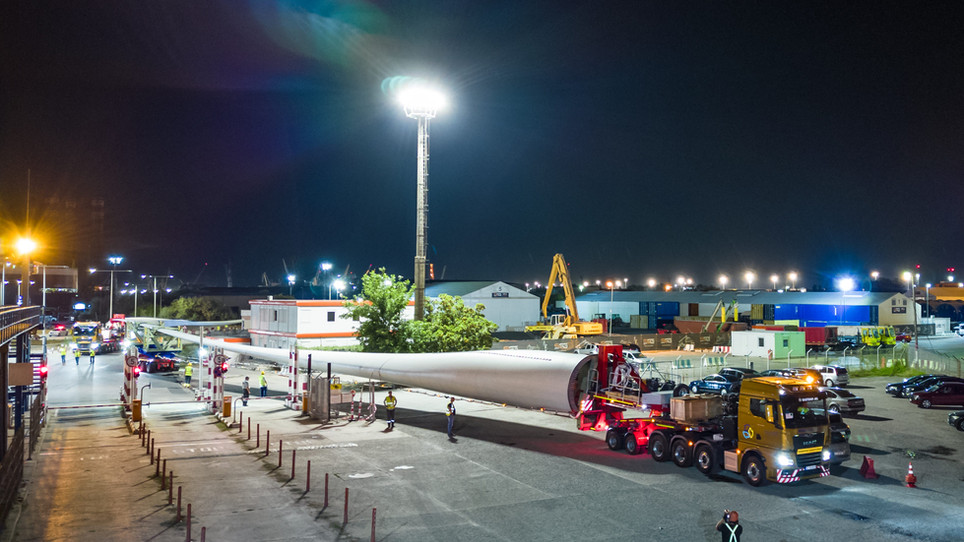

We use Goldhofer BladeS trailers for wind turbine blade transport, offering precise handling and adaptability. These trailers feature a hydraulically adjustable free-turning device that mounts the blade's root frame, allowing for smooth navigation of tight spaces. The turntable system, compatible with Vestas and other common tip racks, provides optimal maneuverability. With a capacity of 25 tons, a hydraulic stroke of up to 2,710 mm, and high ground clearance, obstacles on routes are easily negotiated. The low overall weight reduces fuel consumption, making this an efficient and cost-effective solution for blades over 70 meters.

Low overall weight

Deadweight 4.6t + dolly

Axle load 10-12T at 80km/h

High agility

The gooseneck is coupled to the tractor by a rocking buck with hydraulic locking.

Rotor blade frame mounted in hidraulically adjustable free turning device. The weight picks up the load via a Goldhofer turntable.

Radio remote control for easy operation of all hydraulic functions

Adaptability

The turntable system, compatible with all common tip racks.

Vestas interface, special turntable as interface for Vestas-tip clamp on the self-tracking rear boogy according to Vestas regulations

Superwing

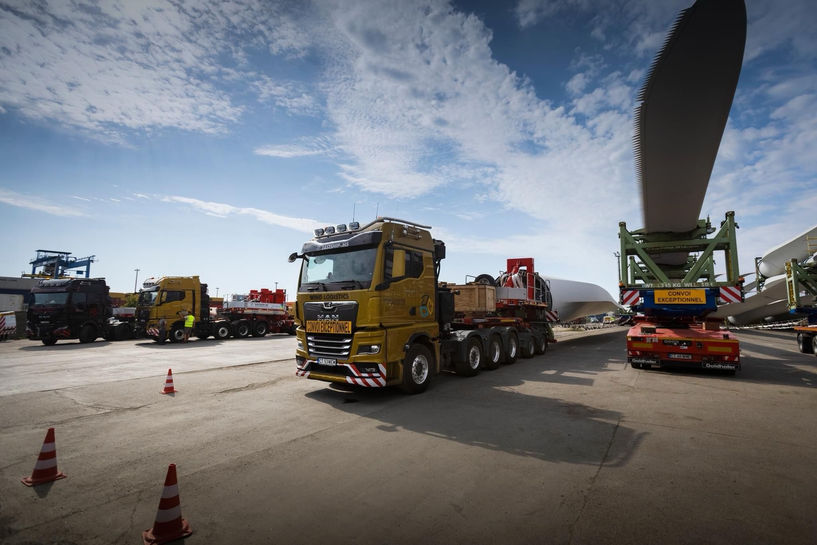

We use the Superwing for wind turbine blade transport, with a 5x extendable configuration reaching up to 72 m. The system combines high manoeuvrability with adjustable steering and 600 mm axle compensation, allowing operation through tight positions and restricted spaces.

High adaptability

Pendular axle technology provides ±300 mm stroke, improving adaptation to uneven terrain. The strong chassis beams are designed to prevent additional bending forces or torsional stress on the load.

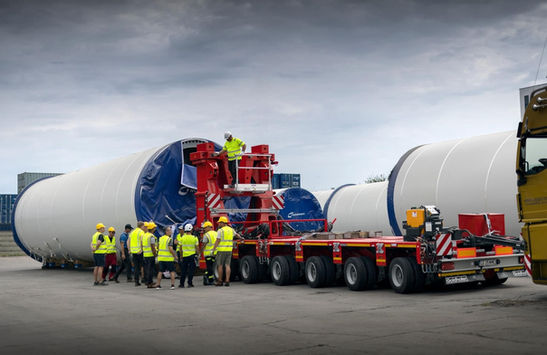

Designed for the efficient transport of large wind turbine tower segments. With a maximum payload capacity of 2x60 tons and adjustable flanges to accommodate tower diameters up to 6,780mm, this adapter provides flexibility for various turbine sizes. It can be directly coupled with THP modular trailers or used with a free-turning device, ensuring stability and ease in maneuvering. Its high swing clearance radius (up to 6,500mm) allows for smooth navigation through tight spaces. These features, combined with reduced overall weight and fuel consumption, help optimize transport costs and operational efficiency for wind energy projects.

RA2 Tower adaptors

Modular trailers

The THP/SL-L modules are specifically designed for the road transport of exceptionally heavy loads, offering an optimal solution for transporting large and high cargo. With a low dead weight of 13.85 tons for the 4-axle configuration and a vehicle width of 3,000 mm, these modules provide enhanced stability and maneuverability. The maximum axle load capacity of 45 tons at 1 km/h ensures that they can support substantial weights while maintaining safety and performance. The innovative design features a high bending moment, allowing for effective load distribution. Additionally, the maximum steering angle of ± 55° facilitates precise navigation in tight spaces. These modules can be further customized with a comprehensive modular accessory system and are available in a split version for enhanced flexibility. This combination of features makes the THP/SL-L modules a reliable choice

Semi trailers

2+7 MAX 810 Double Extendable Semi-Trailer

The MAX 810 2+7 features a double-extendable platform that can be configured at 12.5 m, 21.7 m or up to 31.4 m, with a 2.75 m width and 0.90 m ground clearance. Its 2+7 axle configuration provides a long, distributed load platform for demanding transport operations.

Applications: Wind turbine tower segments, where extended platform length is required, and nacelles, where high component weight requires a suitable axle configuration.

2+6 MAX 810 Double Extendable Trailer

The MAX 810 2+6 features a double-extendable platform that can be configured at 12.5 m, 21.7 m or up to 31.4 m, with a 2.75 m width and 0.90 m ground clearance. Its 2+6 axle configuration provides a long, distributed load platform for demanding transport operations.

Applications: Wind turbine tower segments, where extended platform length is required, and nacelles, where high component weight requires a suitable axle configuration.

7-Axle Double Extendable Semi-Trailer

The 7-Axle Double Extendable Semi-Trailer features a double-extendable platform with a 2.7 m width and 0.90 m ground clearance, offering platform lengths of 11.9 m, 21.1 m and up to 30.3 m. Its 7-axle configuration provides flexibility for demanding transport operations.

Applications: Wind turbine tower segments, where extended platform length is required, and other heavy wind turbine components, where the cargo weight requires a suitable axle configuration.

6 Axles Double Extendable Semi-Trailer

The 6-Axle Double Extendable Semi-Trailer features a double-extendable platform with a 2.7 m width and 0.90 m ground clearance, offering platform lengths of 10.9 m, 21.1 m and up to 30.3 m. Its 6-axle configuration provides flexibility for demanding transport operations.

Applications: Wind turbine tower segments, where extended platform length is required, and other heavy wind turbine components, where the cargo weight requires a suitable axle configuration.

5-Axle Double Extendable Semi-Trailer

The 5-Axle Double Extendable Semi-Trailer features a double-extendable platform with a 2.7 m width and 0.90 m ground clearance, offering platform lengths of 8.5 m, 17.5 m and up to 29.5 m. Its 5-axle configuration provides flexibility for long and demanding transport operations.

Applications: Wind turbine tower segments, where extended platform length is required, and other heavy wind turbine components, where the cargo weight requires a suitable axle configuration.

4-Axle Extendable Trailer

The 4-Axle Extendable Trailer features an extendable platform, with a base length of 6.8 m and an extended length of up to 16.2 m. It is available with a 2.7 m or 3.0 m platform width, 0.86 m ground clearance, and can be configured with or without a loading ramp.

Lowbeds

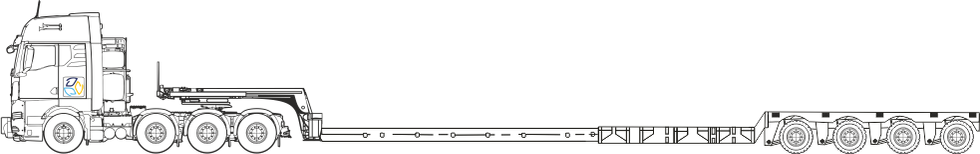

4-Axle Extendable Lowbed Semi-Trailer
